Electronics Projects
In continuation of my ECE degree at Ohio state, I started several electrical projects. The larger of them being guitar pedals. I initially started by breadboarding existing circuits, and then building them into a final product. I then continued to design my own circuits and modify existing ones. Circuits vary from simple op-amp distortions to a modified bucket-brigade chorus.
​
-
Design
-

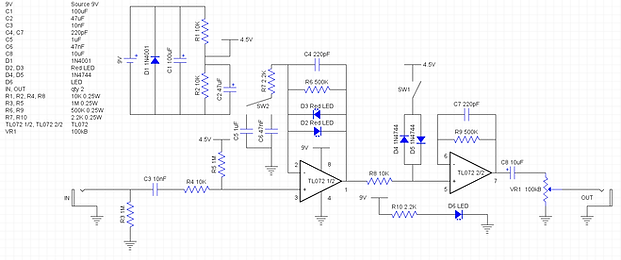

Schematic layout
-
Protoboard layout
-
Final product
-
-
Construction
-
Soldering
-
Final layout of mechanical components.
-
All of the completed pedal projects. Each had their own challenge and modifications. By far the most complex is the large blue one, which is a modified clone of a BOSS CE-2.
All were built with protoboard, and then hand soldered traces. PCB's would be preferable, but with the small volume of projects protoboard is the superior alternative.
The hand soldered traces.
After learning from a few existing circuits, I used reference documents and my existing knowledge to design my own circuit. I then implemented it in a layout and put it together to create a final product.
The completed component layout.
The completed project.
(for a size reference, those are 3mm LED's!)
